TRP

DH-R EVO

€299,00
28 reviews
28 reviews
SKU: ABHD000793
The New DH-R EVO brings maximum power, unparalleled modulation and optimized heat management to heavy 29er DH bikes, long travel Enduro rigs and the new era of E-MTB charging. The G-Spec DH-R brake has been re-designed to the all-new DH-R EVO. A new caliper, new lever, new hose, new oil, new pads, new 223/2.3mm rotors and a new hydraulic leverage ratio, creates a new performance standard that fuels the TRP brand. The DH-R EVO comes in a high polished Silver, subtle matte black or the radiant Gold finish, to match any high-end bike on the market.
Color:Gold
Lever Type:Right Hand Lever
Quantity:
TRP DH-R EVO increased clearance mobile view - modern 29er compatibility for mountain bike riders"

2.3mm Rotor Compatible

Increased clearance, designed for use with our industry-leading 2.3mm thick rotors

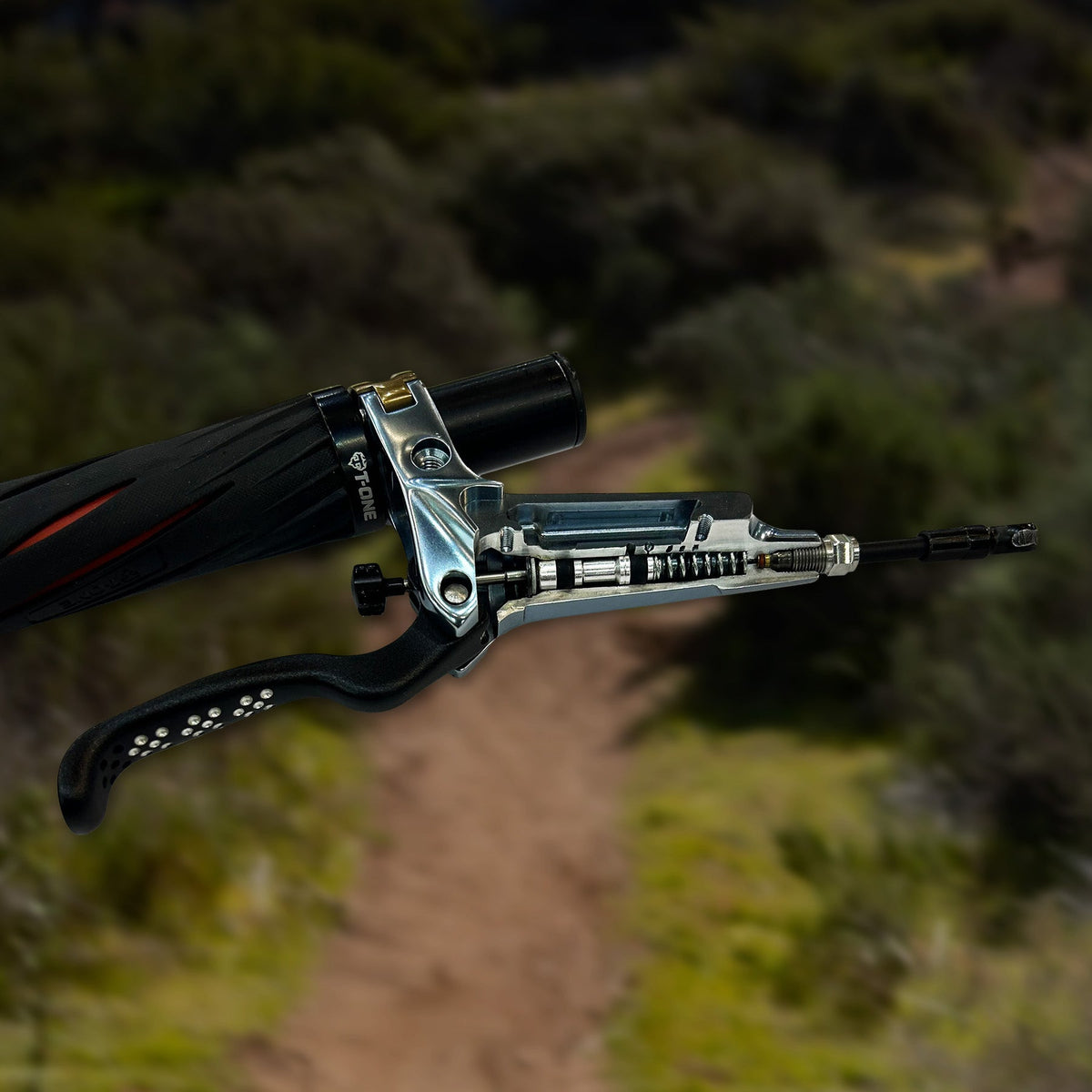

TRP DH-R EVO 9mm brake lever piston technology for maximum hydraulic power and precise braking modulation

9mm Lever Piston

Optimized for 1-finger braking, the increased hydraulic ratio provides more usable power and reduces arm pump over long descents

World Cup Proven

Multiple World Cup victories at the highest level of downhill racing.

TRP DH-R EVO 5mm brake hose mobile view - advanced hydraulic line technology for mountain bike braking

5mm Brake Hose

Our 5mm hydraulic brake hose has been optimized for internal routing, improved thermal stability and increased rigidity for greater hydraulic pressure.

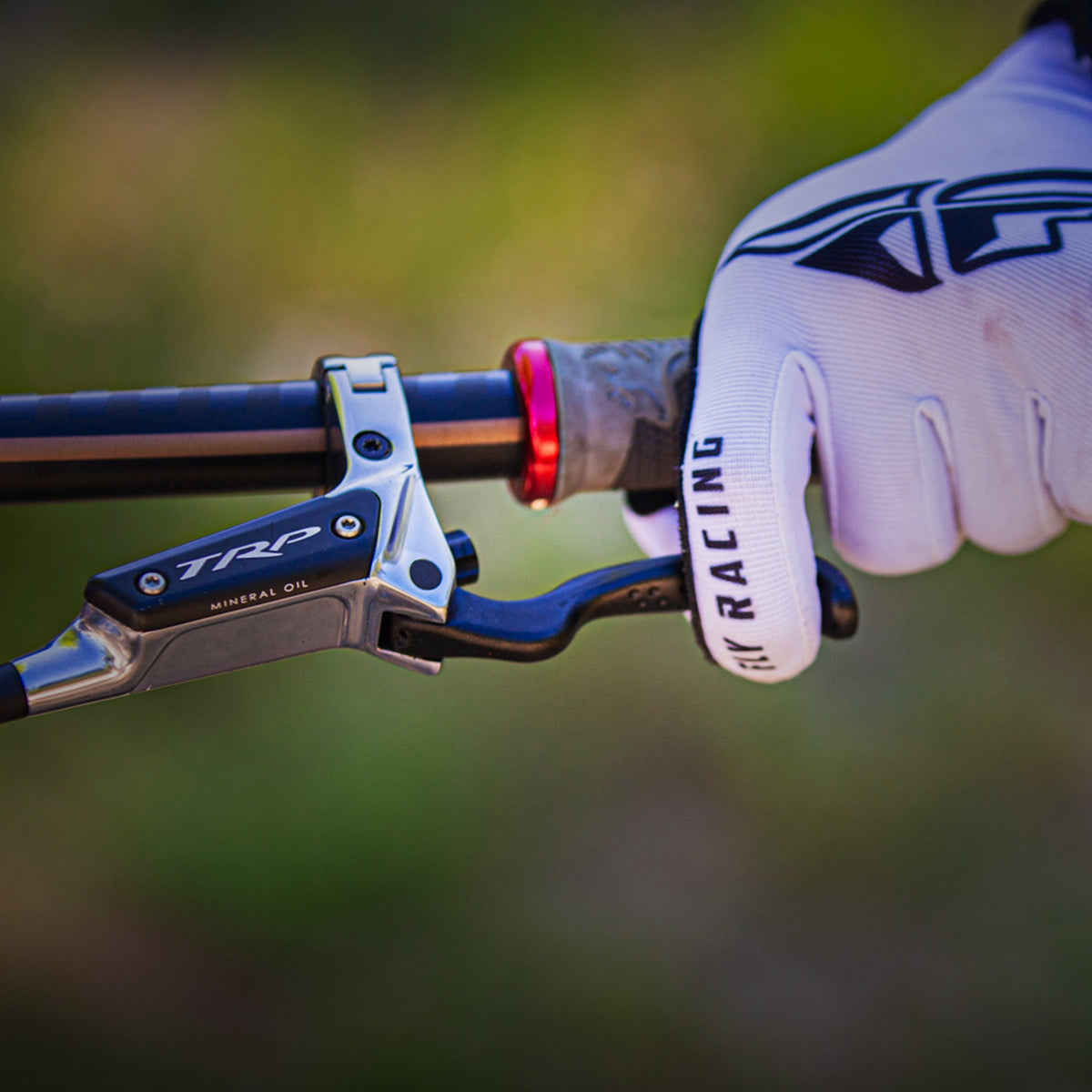

TRP DH-R EVO ergonomic lever blade mobile view - rider comfort and control for extended mountain bike riding

Ergonomic Lever Blade

Crafted in collaboration with Aaron Gwin, our lever blade ensures optimal one-finger braking performance with its ergonomic shape and dimpled surface.
  • Ergonomic lever blade
  • 9mm internal brake lever piston
  • Index Reach adjuster
  • I-spec II compatible
  • MMX/TRP Shifter/I-Spec EV Compatible
  • Performance Fluid Design
  • Lightweight hybrid pistons
  • Top loading pad design
  • New resin brake pad

The easiest brake install you’ve ever performed.

EZ-Plug System

Watch the Video

Route & Measure

Route the pre-bled hose through the frame. Measure the required hose length and mark the cut point with a silver marker.

Prep & Cut

Slide the compression nut cover, compression nut, and olive onto the hose, then cut the hose cleanly at your mark.

Install the Barb

Press the hose barb fully into the freshly cut end of the hose.

Connect & Tighten

Insert the hose into the lever, thread in the compression nut, and tighten to 5–7 Nm.

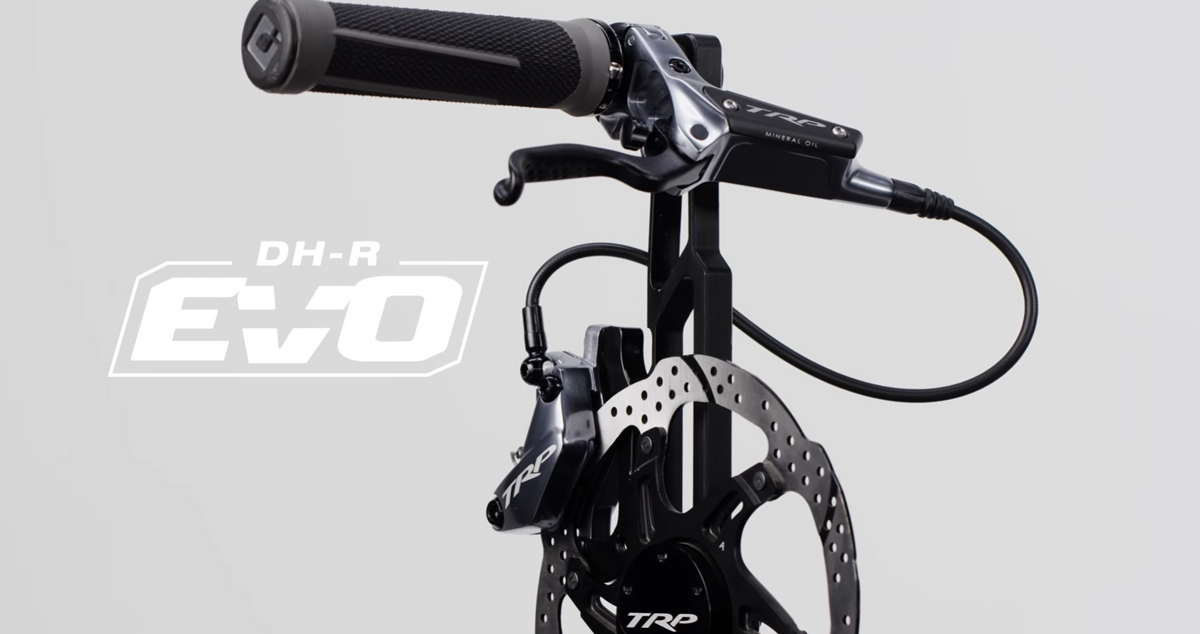

The DH-R EVO Development Story

Don't Just Take Our Word For It

Media Reviews

TRP professional mountain bike components lifestyle photography for cycling market presentation"
"If you're in the market for a fresh set of brakes, the DH-R EVO's are worth serious consideration. With an extremely consistent lever feel, easy setup, and plenty of manageable power, TRP's new brakes hit the mark." - Pinkbike
TRP DH-R EVO hydraulic disc brakes for downhill mountain biking - maximum power and heat management for riders"
"TRP's DH-R Evo brakes offer huge amounts of power, modulation, feedback, and they are damn near impossible to overheat. Our new favorites!" - The Loam Wolf
TRP DH-R EVO brake system professional product photography - premium mountain bike components"
"Their light feel, easy access to power and excellent control make them a joy to ride. TRP did their homework with the DH-R Evo and it shows on the trail." - NSMB
